1 - Introduction

Introduction to Aura Virtual Assistant

What is Aura Virtual Assistant?

Aura Virtual Assistant is the new relationship with our clients. A cutting-edge digital assistant accessible through different channels, brands and devices, that understands our customers’ needs expressed in natural language and offers personalized responses in real time.

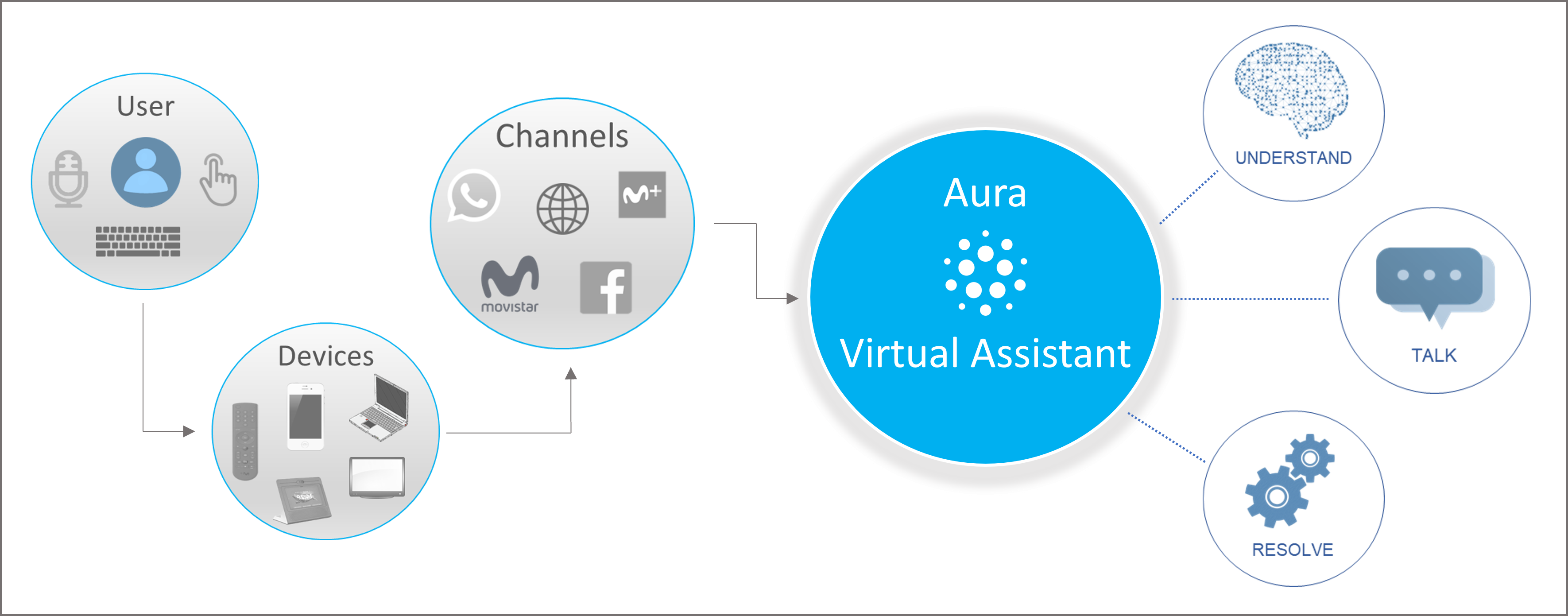

Figure 1. Aura Virtual Assistant

Aura Virtual Assistant is able to:

• Talk and establish conversations with the users, as it is based on a conversational design to provide a natural experience through several channels and using different brands

• Understand and recognize the user’s requests: Leveraging Cognitive Services, Aura Virtual Assistant offers natural language processing capabilities for an accurate communication with the customers, depending on channel capabilities and usability criteria.

• Resolve: Aura Virtual Assistant builds the logic of different types of experiences and provides precise answers to our customers in real time.

Key Aura Virtual Assistant features

Aura Virtual Assistant is designed as a distributed ecosystem, within an architecture evolution at the forefront of the latest advances in software architecture.

In this framework, it is conceived as a multi-bot system based on Microsoft skills architecture, that offers the following capabilities:

Aura Virtual Assistant functional overview

The following diagram shows how Aura Virtual Assistant operates and its communication flow at a high level:

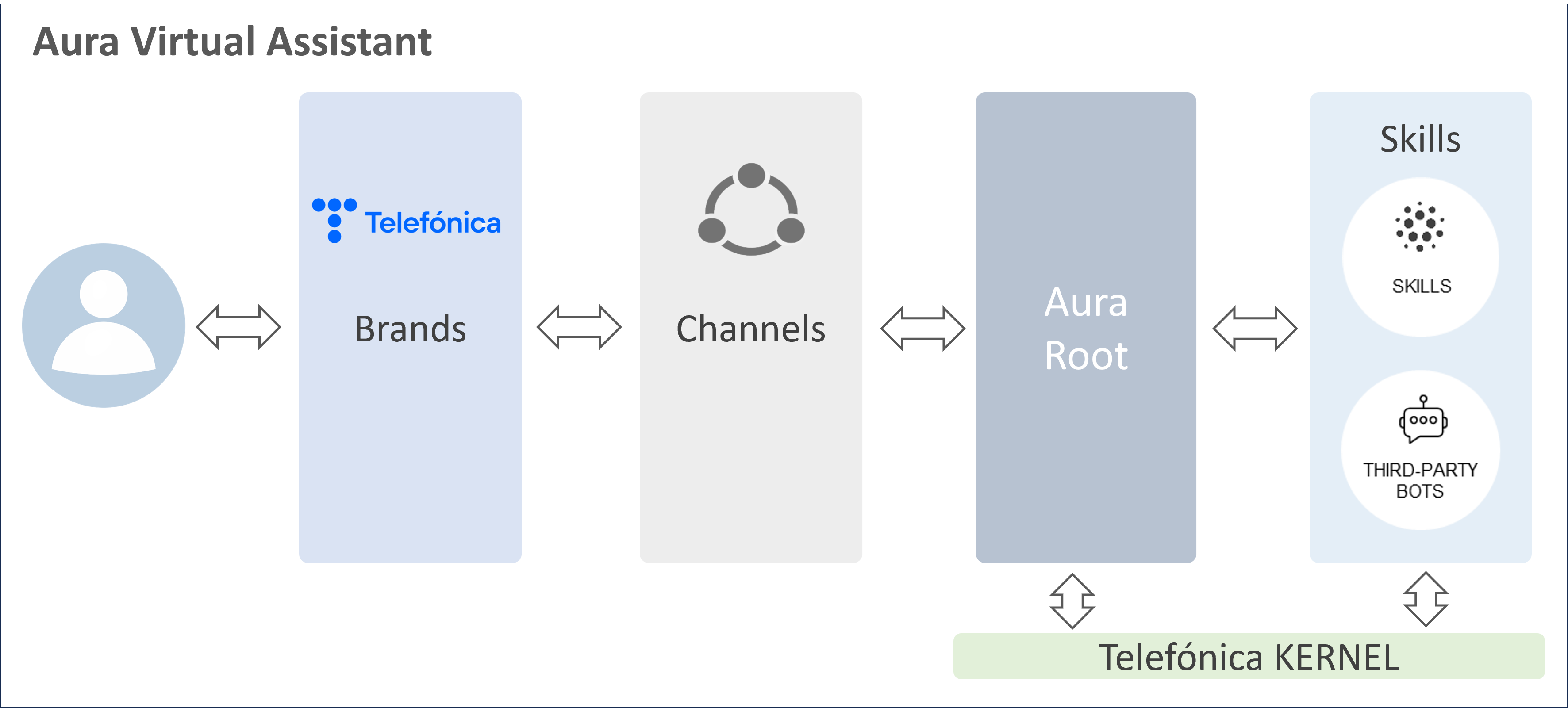

Figure 2. Aura Virtual Assistant functional overview

• The user accesses Aura through one of the brands through which the OB commercializes its services.

• The user sends a request to Aura through a specific channel available for the selected brand, which is the communication mean a Telefónica client must use to interact with Aura.

• Then, Aura Root component, which is the core block of Aura Virtual Assistant functionalities, receives the request and redirects it to the best skill to answer it.

• This skill, which is a bot with specific expertise and features, understands the request and resolves it. If required, it retrieves data from Kernel.

• Aura Root provides the response back to the user through the intended channel.

Discover more details of Aura Virtual Assistant functional operation and its functional components in the document Aura Virtual Assistant functional description.

Are you a highly-skilled technician? Access here technical documents related to Aura Virtual Assistant:

• Aura Virtual Assistant development architecture and operation
• Aura Virtual Assistant technical components
• Aura Virtual Assistant technical guidelines

Benefits from using Aura Virtual Assistant

Benefits for Aura end-users

Key advantages	Enhancements for Aura
Easier relationship	Aura Virtual Assistant enhances customer relationships and improves business automation, efficiency, and transversal intelligence within the digital ecosystem.
Improved user’s experience	Aura can easily integrate cutting-edge AI technologies to improve Aura capabilities, thus offering a wider range of experiences together with more accurate and enriched responses to the users, while ensuring data privacy and security.
Consistency	The user will always have the same experience regardless of the channel she is using, as there will not be different use cases depending on the channel
Ready for future challenges	The quick and easy integration of technologies broadens the capabilities of Aura, that can take advantage of state-of-the-art solutions from different partners to be connected to Aura

Benefits for Aura IT Teams

Key advantages	Enhancements for Aura
Efficiency	Multibot architecture can perform tasks more efficiently due to the skills isolation. Each skill can be deployed and work independently, leading to better overall performance and resources utilization.
Scalability and flexibility	The separation of Aura functionalities (logic, training, routing, deployment, etc.) allows a cost and time-effective strategy for extending Aura capabilities without affecting other components
Autonomy	The new architecture allows an easy integration of multivendor development tools (such as Microsoft Composer, Teneo), third-party bots or innovative cognitive components (for example, KSolr, MSFT Language Studio, Azure OpenAI models).
Deployment simplification	The separation of Aura into different functional blocks and the skills isolation facilitate the installation, as only the specific component/feature to be deployed is affected, without the need for global re-deployments
Resilience	Multibot architecture improves fault-tolerance. If a single component fails, the whole system can continue functioning
Enrichment mechanisms	Aura can incorporate tools able to add additional information both to the user’s request (better resolution) and to the response (relevant information for the user) through the integration of Advanced Analytics Models (AAMs) and contextual information

2 - Functional description

Aura Virtual Assistant functional description

Foundation: Microsoft skills architecture

Aura architecture is conceived as a multi-bot system based on Microsoft Bot Framework skills architecture.

In this framework, the architecture is composed of a root bot, that can call one or more skill bots, which are specific to a knowledge area or topic.

The user interacts directly with the root bot, and it delegates the conversational logic to a skill to provide the user with the intended service or response.

Figure 3. Microsoft skills

Access Microsoft Skills documentation.

Aura Assistant functional overview

Starting from the functional overview flowchart (Figure 2), the current section zooms in and shows a deeper detail of the functional operation of Aura Virtual Assistant.

Figure 4. Aura Virtual Assistant functional operation

1. The user accesses a specific Telefónica brand and sends a request to Aura through a channel.

2. The channel connects to Aura Root.
   Two scenarios arise here:

   • If the channel “speaks” a language Aura understands, that is, it supports Direct Line protocol: direct connection.
   • If the channel “does not speak” a language Aura understands: the incoming request must be converted into a standard Aura message through an adapter.

3. Aura Root makes the decision about what is the best skill (bot) to answer the user’s request in a routing component.

4. Optionally, it is possible to add additional information to the request through an enrichment module, with data coming from Aura context, algorithms, analytical models, insights, etc.

5. Aura Root sends the request to a specific skill, depending on the selected domain.

6. The specific skill (domain-bot) routed by Aura Root receives the request and handles it. At this stage, two scenarios can arise:

   • 6.a. The skill receives the request in Direct Line format.
   • 6.b. If the routed bot is not part of the Microsoft ecosystem (third-party bots), the request must be transformed through a third-party adapter to be understood by the bot (and the other way around with answers).
     Strictly speaking these adapters are not part of Aura Root and could be integrated through different strategies by the OBs. For instance, the conversion could be performed in a specific skill connected to the third-party bot.

7. The skill calls NLP as a Service capability in ATRIA for the recognition of the user’s intention and entities.

   • Currently, aura-bot as a skill works as in the previous architecture, calling Aura NLP for recognition purposes.

8. The response to the user’s request is built and sent back to Aura Root.

9. Aura Root provides the answer back to the channel. If required, the channel adapter converts again the Aura message to the format compatible with the channel.

Take into account that the current document only shows a functional representation in order to make the new architecture more understandable for readers. The underlying technical components and processes are explained in the documents:

• Aura Virtual Assistant development architecture and operation
• Aura Virtual Assistant technical components
• Aura Virtual Assistant technical guidelines

2.1 - Introduction to Aura channels

Introduction to Aura channels

Introduction

An Aura channel is a communication means a Telefonica client may use to interact with Aura Assistant, to request for products or services.

Aura Virtual Assistant is multi-channel, as it is designed to communicate through different types channels to make requests and receive responses.

In any case, it is able to adapt to the channel’s specific requirements, providing a consistent and engaging experience across different environments while maintaining its personality and tone.

What languages do Aura Assistant talk?

To be able for a channel to communicate with Aura Virtual Assistant, it has to “speak” a language Aura can understand. As Aura platform is based on Microsoft Azure Bot Service and Bot Framework, it uses the general-purpose communication mechanism called Direct Line API, provided by Microsoft.

In this framework, Aura Virtual Assistant is able to communicate:

• Directly with channels that “talk” Microsoft Direct Line
• Directly through communication protocols based on Direct Line, such as Auraline
• Through the use of adapters for channels that do not support Direct Line.

Direct Line

As Aura platform is based on Microsoft Azure Bot Service and Bot Framework, it uses a general-purpose communication mechanism called Direct Line, provided by Microsoft.

However, having a connection means is not enough, and Aura Virtual Assistant has designed a normalized semantic model built on top of the Direct Line protocol, to optimize the communication of Aura with channels or services: Aura Request - Response Semantic Model.

Do you need more technical details regarding Microsoft Direct Line? Access the document Direct Line communication protocol

Discover the Aura Request - Response Semantic Model.

Auraline

Aura Platform Team has developed a proprietary communication protocol: Auraline, based on Direct Line but eliminating the dependency on Microsoft Azure Bot Service.

Auraline provides significant advantages, including cost saving, higher flexibility, easy integration for channels and the ability to plan future developments according to specific needs. Additionally, it enables addressing new backend-to-backend scenarios, such as managing a channels aggregator system or responding across multiple channels or applications instead of a single one.

As the Direct Line protocol, Auraline uses the Aura Request - Response Semantic Model, within the version v3 of the channelData property.

Find detailed information regarding Auraline communication protocol

Use of adapters

For channels that do not support Direct Line, it is required to use an adapter that “translates” the information coming from the channel to a language Aura can understand. This is the case of WhatsApp channels.

The adapters are provided by aura-bridge and are based on the last version of the standard Aura request/response model.

Which channels are currently supported by Aura?

The following table shows the channels currently supported by Aura Assistant for each of the three communication protocols explained in the previous section and organized by its origin: Telefónica channels or third-party channels.

Communication protocols	Telefónica channels	Third-party channels
Channels supporting Direct Line protocols	Mobile apps (Meu Vivo) Movistar Plus IPTV (STB+desco)
Channels that require an adapter to communicate with Aura	N/A	WhatsApp Google RCS Business Messaging

Mobile apps (Meu Vivo)

Meu Vivo is a key Vivo channel that currently supports Direct Line protocol.

This app offers complete Telco experiences in Vivo, with an intuitive interface and easy interaction and with all the potential of this channel for showing both text and visual elements. The current application is built as a set of WebViews embedded in a native container. And the communication with Aura is done through Direct Line protocol based on a JSON model attached in the activity of the Bot.

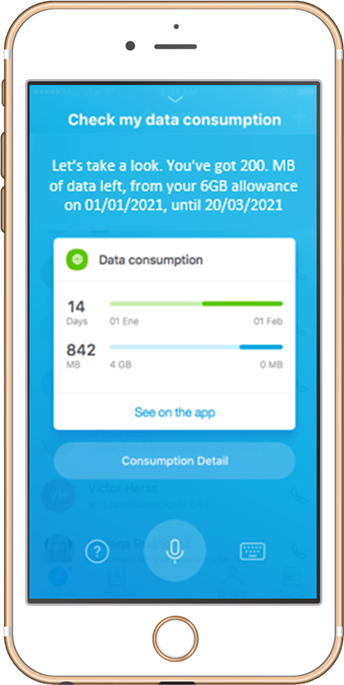

Aura in Meu Vivo channel

Movistar Plus

Movistar Plus is a Telefónica proprietary channel that supports Direct Line and Auraline protocols.

Aura is integrated in Movistar Plus mobile app, providing a fast and easy interaction with the customers focused on TV experiences, mainly for searching for TV content and launching them on TV.

Although text messaging is available, the use of voice control boosts the agility of TV searching.

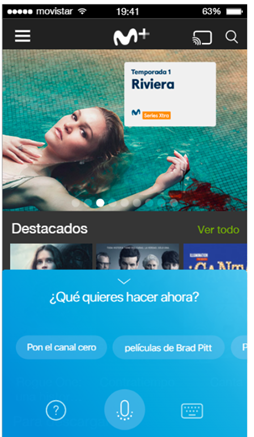

Aura in Movistar Plus channel

IPTV (STB+desco)

IPTV (STB+desco) is a Telefónica proprietary channel that supports Direct Line and Auraline protocols.

Aura is integrated in Movistar+ vocal remote control, offering TV experiences such as searching for TV content, navigating through menu sections, asking for recommendations, changing language, subtitles activation or open Movistar Apps.

It allows users to interact with the M+ service using only their voice, helping them to look for content faster and controlling the reproduction while keeping their privacy safe (it only listens when users keep pressing the mic button).

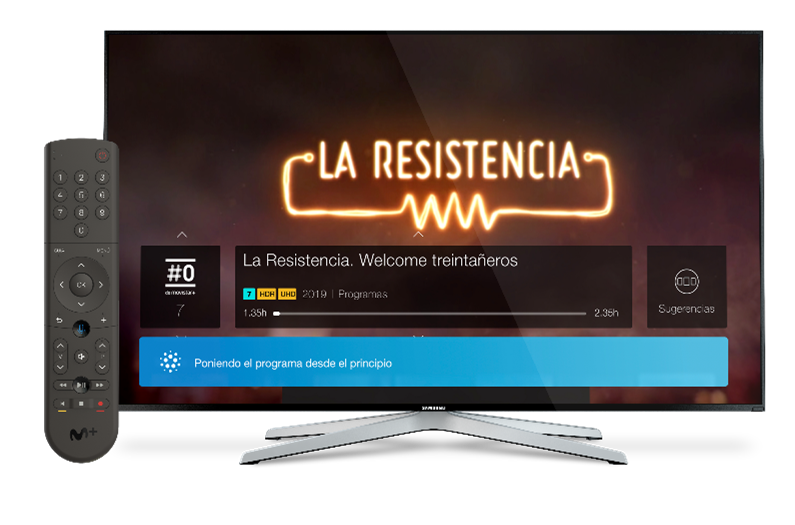

Aura IPTV

WhatsApp

Aura is available on a widespread and close at hand channel such as WhatsApp. It offers an easy and agile interaction, with key benefits:

• Direct and concise text responses to the users
• High speed interaction with the user
• Better engagement Aura-user, as WhatsApp channel is widely used by most of our users and always available in the mobile phone

Presently, Aura contains the functionalities listed below in WhatsApp. Moreover, OBs can build their own use cases in this channel.

• Global use cases: onboarding, authentication, handover use case (the user asks for an agent to solve her request).
• Small Talk (greetings, goodbyes, thank yous, swearwords)
• Use of files and templates in experiences
• Use of interactive messages in experiences
• Use of emoticons in experiences
• Use of footer in experiences

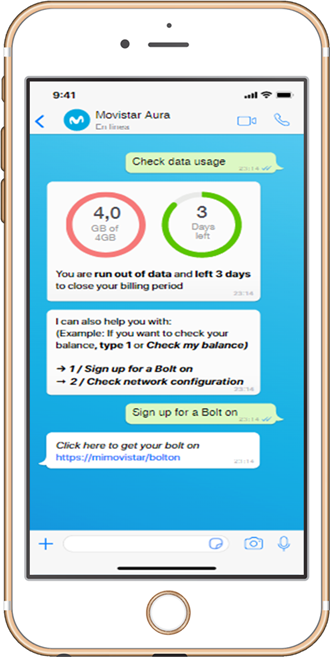

Aura in WhatsApp

Do you need technical details regarding WhatsApp experiences in Aura?

Descriptive documentation related to WhatsApp channel in Aura

Guidelines for the activation of WhatsApp channel

Guidelines for use cases development in WhatsApp

Aura WhatsApp design toolkit

Google RCS Business Messaging

Rich Communication Services (RCS) is a communication protocol designed to enhance traditional SMS and MMS messaging. The channel Google RCS Business Messaging allows sending different types of messages to the user, such as texts, suggested replies, suggested actions, etc. Additionally, RCS enables its users to incorporate richer content through features like video, images, cards, carousels and other interactive elements.

Aura allows Google RCS Business Messaging channel to communicate with the users through an application installed by default in their phones, with lower costs than WhatsApp.

Do you need technical details regarding Google RCS Business Messaging channel?

Google RCS Business Messaging channel descriptive documentation

Guidelines for the activation of Google RCS Business Messaging channel

Guidelines for use cases development in Google RCS Business Messaging channel

Channels technical documentation

Are you a highly-skilled technician?
Do you need low-level technical documentation regarding channels?

Access these documents:

Descriptive channels documentation

Guidelines for managing channels in Aura

2.2 - Introduction to Aura Root

Introduction to Aura Root

Introduction

Aura Root constitutes the core functional block of Aura Virtual Assistant and is responsible for connecting channels with skills (bots).

It carries out the following key tasks:

• Receives requests from the channels.

• If required, it adapts the incoming request from a channel that Aura is able to understand through an adapter.

• Makes the decision about what is the best skill (bot) to answer the user’s request and routes this petition to the corresponding domain bot in a routing component. Currently, routing is only done by channels or channels groups.

• Is able to enrich both the request and the answer with additional information coming from Aura context and different models in a enrichment module. (In the current version, no enrichment is available).

• Can have multiple skills connected, and one of them could be the current aura-bot functioning as a skill.

• Generates entities files with relevant information regarding each interaction, that will be afterwards uploaded to Kernel.

Aura Root functional components

From a functional point of view, Aura Root includes the following features:

Routing

The user’s request is routed to a specific skill (domain bot) able to best respond to this query.

Currently, routing is done only by channels or group of channels (no configuration options are available).

Channel adapter

If the channel does not support a language that Aura understands (Microsoft Direct Line protocol), an adapter is required to establish the communication.

Enrichment

Enrichment adds additional data to enrich both request and response through context information, algorithms, analytical models, insights, etc.

This feature will be available in further releases.

Aura Root technical components

As explained before, Aura Root is a functional representation in order to make the new architecture more understandable for readers.

The technical component that manages the functionalities above defined is aura-groot.

2.3 - Aura multibrand feature

Introduction to Aura multibrand feature

Introduction

The OBs commercialize their Telefónica services through different brands (Movistar, O2, Vivo, Blau, Whatsapp SIM, etc.).

To align with this scenario, Aura (both Aura Virtual Assistant and ATRIA) is now designed as a multibrand virtual assistant, capable of providing services to multiple brands through a shared infrastructure.

The communication flow is similar to the one previous to the implementation of the multibrand feature (see Figure 2).

• A user can access Aura through the different Telefónica brands available in her country.
• Within a specific brand, the connection to Aura is done through a particular channel.
• The user can now submit a request (use case) and have it resolved, as long as the use case is available in this specific channel.

Overview of the multitenant architecture

Aura multibrand feature is based on a multitenant architecture.

In the multitenant architecture, we introduce the concept of tenant, defined as the deployment associated to a specific brand.

Aura multibrand feature operates in different scenarios:
- In Aura Virtual Assistant (use cases resolved by a bot or skill)
- In ATRIA (use cases resolved by AI-powered LLM models)

In both scenarios, Aura Virtual Assistant and ATRIA are structured in different tenants, each of them associated to a specific brand and with isolated deployment and operation.

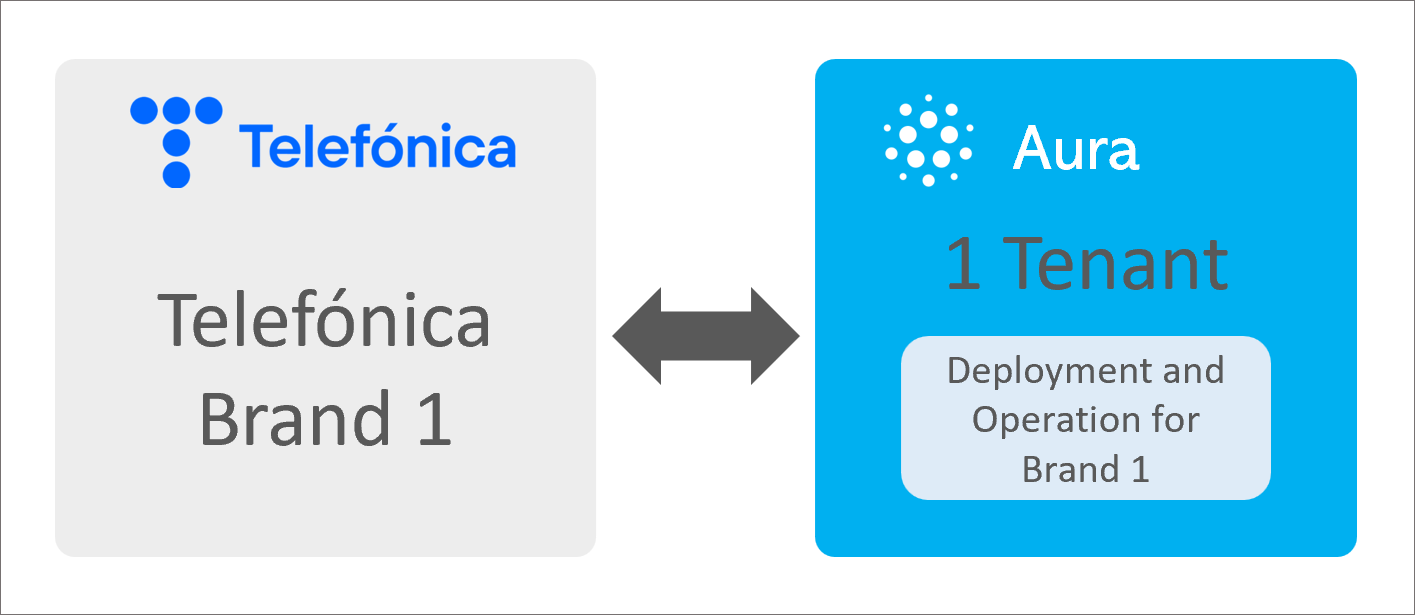

Relationship between brand and tenant

There is not physical separation between Aura components in each brand, but logical separation.

As well as Aura, Kernel also supports a multitenant architecture. A tenant in Kernel is defined as a logical way of isolating resources within a Kernel instance.

A use case submitted from a specific brand will be resolved using the Kernel tenant associated to this brand.

See more details of the specific behavior of the multitenant architecture in:

• In Aura Virtual Assistant
• In ATRIA

Functional multitenant architecture in Aura Virtual Assistant

An overview of the functional operation of the multibrand feature based on multitenant architecture in Aura Virtual Assistant is shown and explained below:

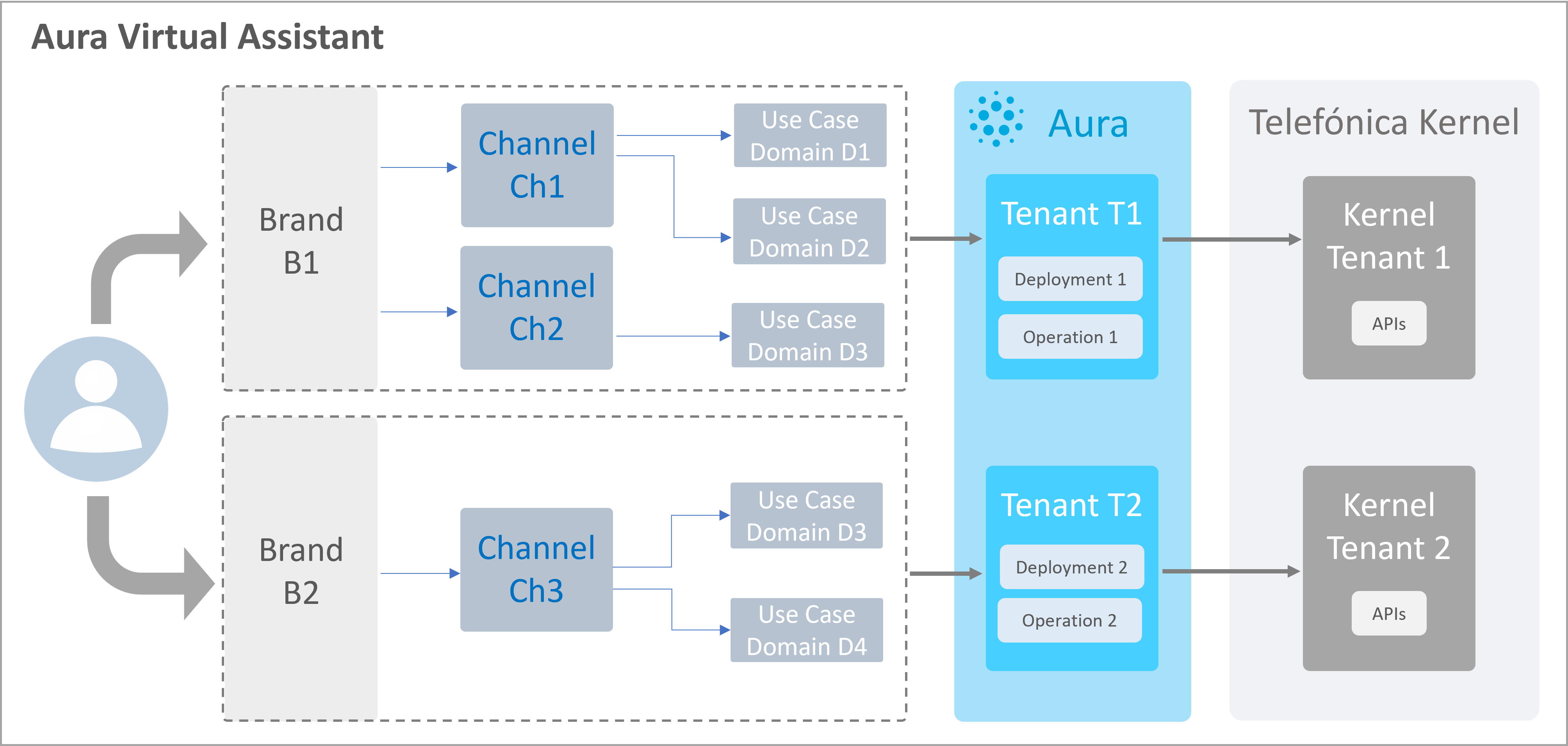

Overview of multitenant architecture in Aura Virtual Assistant

• Aura Virtual Assistant supports different brands
• Each brand is associated to several channels
• Each channel allows accessing to use cases in a specific domain
• Use cases in a specific brand are operated by a particular Aura tenant
• These use cases will be resolved using the Kernel tenant associated to this brand

An exception to this Aura Virtual Assistant behavior is for authentication. In this task, the authentication request enters firstly through a Kernel tenant, and once the user is authorized, it passes to the corresponding Aura tenant.

Comprehensive technical documents

Multitenant configuration in Aura installer

Aura installer: Multitenant configuration: Guidelines for the configuration of different tenants when several brands are available in the OB.

Descriptive documents and guidelines

Once the user accesses through a specific Telefónica brand, the technical behavior of the corresponding Aura tenant is similar to the one before the implementation of the multitenant architecture. Therefore, there are no specific descriptive documents or guidelines for the multitenant architecture.

2.4 - Introduction to skills

Introduction to skills

Introduction

Skills are bots able to perform a specific function or capability in a coordinated and efficient manner designed to handle particular tasks or provide information on a focused topic.

In Aura Virtual Assistant, skills can communicate with Aura Root.

In Aura Virtual Assistant, skills are bots based on Microsoft skills protocol or can be external bots built with any technology available on the market.

In any case, currently they are domain bots, each of them able to manage a different type of request from the user. Therefore, each skill will contain the use cases corresponding to its domain.

Skills can communicate with Aura Root to receive a user’s request and resolve it, to provide the user with the most accurate answer or service and can be trained (each skill will invoke Aura Cognitive Services) and deployed independently.

Types of skills

Within Aura, there are three different types of skills:

Skills developed over Aura cluster

They are proprietary skills that follow Microsoft Bot Framework Direct Line protocol.

Currently, aura-bot is a skill itself.

Skills developed outside Aura cluster with Microsoft-compatible technologies

These skills are developed outside Aura with a technology compatible with Microsoft Bot Framework (Composer, etc.).

Third-party bots, developed with other technologies

They are bots developed with other technologies different from Microsoft ones (Google Assistant, Teneo, etc.).

They require an adapter for its communication with Aura Root.

These third-party adapters are skills that must be developed by the OBs willing to connect their external bots with Aura Root.

Aura Bot as a skill

In the current phase of development of Aura Virtual Assistant, aura-bot is a skill itself but, in general terms, it behaves the same way as in the previous architecture.

Currently, all the existing use cases are placed in aura-bot skill in order to assure backward compatibility, excepting Germany, that has migrated its use cases to an external bot.

Due to the migration of aura-bot component to a skill, certain components have suffered from modifications to be adapted to it and other ones have moved to aura-groot. For example: aura-bot-adapter now extends the Microsoft Bot Framework class cloudAdapter.

Find comprehensive documentation here: Aura Bot as a skill

Skills technical documentation

Are you a highly-skilled technician?
Do you need low-level technical documentation regarding skills?

Access these documents:

Manage skills

3 - Development architecture and operation

Aura Virtual Assistant development architecture and operation

Introduction

Aura Virtual Assistant architecture is conceived as a multi-bot system based on Microsoft skills architecture.

In this framework, Aura is divided into isolated modules (skill-based bots) that, currently, are independent domain bots able to provide a specific function or capability in a coordinated and efficient manner.

These self-supported skills work with an orchestrator at the top, responsible for connecting channels with bots and managing the conversational flow with the customer.

Mapping functional architecture with development architecture

As explained before, Aura Virtual Assistant documentation contains both:

• Low-level technical documents, aimed at not-technical profiles, that describe the functional behavior of our assistant

• High-level technical documents, for highly-skilled technical profiles, that include detailed technical information, system architecture and technical processes

In order to ease comprehension for readers, take as a basis the Aura Virtual Assistant functional flowchart and check the mapping between functional and technical components.

Functional component		Technical component
Channel		Channel
Aura Root	Routing module	aura-groot
	Channel adapter	aura-bridge
Skill		Skill

3.1 - Development architecture

Aura development architecture

Introduction

A bot is an application, particularly an HTTP server, that allows interaction with users in a conversational way. Different means of interaction are available, such as text, cards with images, video or audio and speech.

Users interact with the bot through a given channel, that is the final application used directly by the users. For instance, the bot can be accessible from Facebook, WhatsApp or from any private application, such as My O2 or Mi Movistar. Every message exchanged between the user and the bot is called an activity.

In Aura distributed architecture, the user interacts directly with the root bot, here named aura-groot, and the root bot delegates some of its conversational logic to the skill aura-bot.

Skills and root bot communicate over HTTP using the Bot Framework protocol.

Both aura-bot and aura-groot are separate bots and are published independently.

Main technical components

The key Aura technical components that executes all the functionalities of Aura Virtual Assistant are defined below.

Take into account the mapping between the functional architecture with development architecture:

• aura-groot
  aura-groot is the main component in charge of handling the assistant. It is responsible for the communication between each channel and its corresponding skill, keeping track of all the communication process, but introducing a minimal interference on it.

  Access detailed technical documentation regarding aura-groot component

• aura-bot
  aura-bot is a skill based on Microsoft Bot Framework that constitutes Aura’s neuronal network. It handles the requests received from aura-groot and interacts with every Aura system or component in order to provide Aura users with the intended answer or requested service.

  Access detailed technical documentation regarding aura-bot component

Operational flow

The main stages in tasks in Aura Virtual Assistant conversational process are described below and shown in the following flowchart.

• aura-groot adapter receives activities from the user and forwards them to the aura-groot activity handler. (Activities from the user are received at the aura-groot messaging endpoint.)

• The aura-groot uses a skill HTTP client to send an activity to the skill. The client gets the consumer-skill conversation information from a skill definition and a skill conversation ID factory. This includes the service URL that the skill will use to reply to the activity.

• The aura-bot adapter receives activities from aura-groot and forwards them to the skill’s activity handler. (Activities from the consumer are received at the skill bot’s messaging endpoint).

• When aura-bot responds, the aura-groots skill handler receives the activity. It gets the root-user conversation information from the skill conversation ID factory. It then forwards the activity to the aura-groot’s adapter. (Activities from the skill are received at the aura-groot’s skill host endpoint).

• The aura-groot adapter sends messages from the skill to the user.

4 - Technical components

Aura Virtual Assistant technical components

Index

5 - Technical guidelines

Aura Virtual Assistant technical guidelines

Introduction

6 - Experiences Builder

Experiences Builder

Index

• Introduction to Aura use cases
• Aura Global use cases
• Local experiences
• Experiences based on the generic dialog
• Development tools
• Aura API clients
• Development troubleshooting
